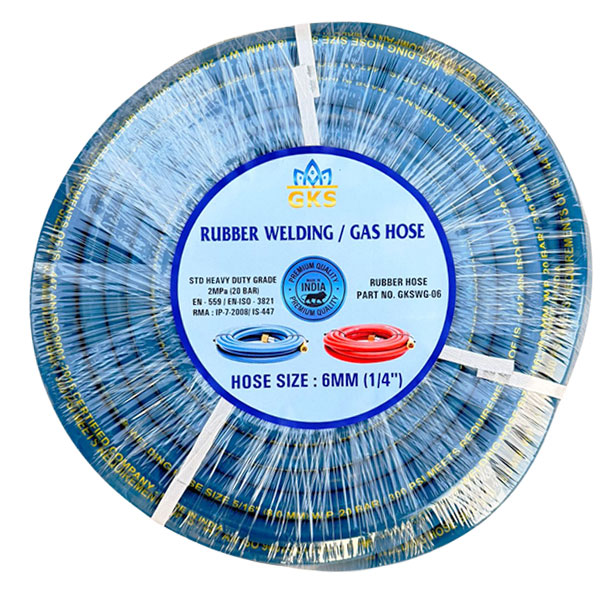

WELDING / GAS HOSE
Tube Material
Modified Synthetic – Natural Rubber Compound
Reinforcement
Single / Double Braid High Tenacity Polyester Yarn
Outer Cover
SBR / Natural Rubber with Weather & Abrasion Resistance
Working Temperature
-25°C to +80°C
Application
Welding & Gas Cutting in Industrial Fabrication
Key Properties
Flexible, Heat Resistant, Uniform Thickness
Colour Options
Blue / Red / Green (Inner Tube: Black)
Finish Type
Smooth or Wrapped
Standards
IS 447 · / ISO 3821 ·/ RMA IP-7-2008 · / EN-559
| Part No. | Inch | ID (mm) | OD (mm) | WP (bar) | WP (psi) | BP (bar) | BP (psi) | Weight (Kg/m) | Std. Length (m) |
|---|---|---|---|---|---|---|---|---|---|
| GKSWH-06 | 1/4 | 6 | 13 | 20 | 300 | 60 | 900 | 0.165 | 100 / 50 |
| GKSWH-08 | 5/16 | 8 | 15 | 20 | 300 | 60 | 900 | 0.215 | 100 / 50 |
| GKSWH-10 | 3/8 | 10 | 17 | 20 | 300 | 60 | 900 | 0.250 | 100 / 50 |
Note : Reel Packing / Shrink Box Packing available with & without fittings.
