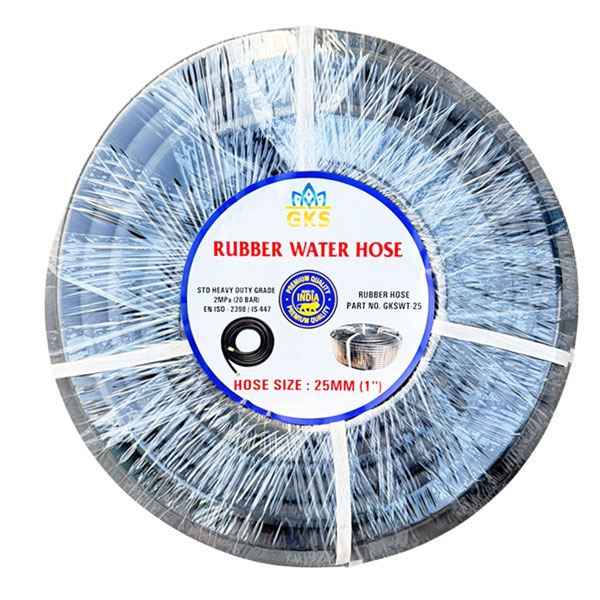

WATER HOSE
Tube Material
Modified Synthetic – Natural Rubber Compound
Reinforcement
Single / Double Braid High Tenacity Polyester Yarn
Outer Cover
SBR / Natural Rubber with Weather & Abrasion Resistance
Working Temperature
-30°C to +70°C
Application
Industrial, Construction, Agriculture & Irrigation
Key Properties
Abrasion Resistant, Flexible, Uniform Thickness
Colour
Inner: Black | Outer: Black / As per requirement
Finish
Smooth / Wrapped
Standard
IS 444
| Part No. | Inch | ID (mm) | OD (mm) | WP (bar) | WP (psi) | BP (bar) | BP (psi) | Weight (Kg/m) | Std. Length (m) |
|---|---|---|---|---|---|---|---|---|---|
| GKSWT-06 | 1/4 | 6 | 13 | 15 | 215 | 45 | 650 | 0.165 | 100 / 50 |
| GKSWT-08 | 5/16 | 8 | 15 | 15 | 215 | 45 | 650 | 0.215 | 100/50 |
| GKSWT-10 | 3/8 | 10 | 17 | 15 | 215 | 45 | 650 | 0.250 | 100 / 50 |
| GKSWT-12 | 1/2 | 12.5 | 21 | 15 | 215 | 45 | 650 | 0.340 | 100 / 50 |
| GKSWT-16 | 5/8 | 16 | 24 | 15 | 215 | 45 | 650 | 0.430 | 100 / 50 |
| GKSWT-19 | 3/4 | 19 | 27 | 15 | 215 | 45 | 650 | 0.520 | 100 / 50 |
| GKSWT-25 | 1 | 25 | 35 | 15 | 215 | 45 | 650 | 0.740 | 100 / 50 |
| GKSWT-32 | 1-1/4 | 31.5 | 43 | 10 | 150 | 30 | 450 | 1.200 | 60 / 40 |
| GKSWT-38 | 1-1/2 | 38 | 50 | 10 | 150 | 30 | 450 | 1.450 | 60 / 40 |
| GKSWT-51 | 2 | 50 | 64 | 10 | 150 | 30 | 450 | 2.000 | 40 |
