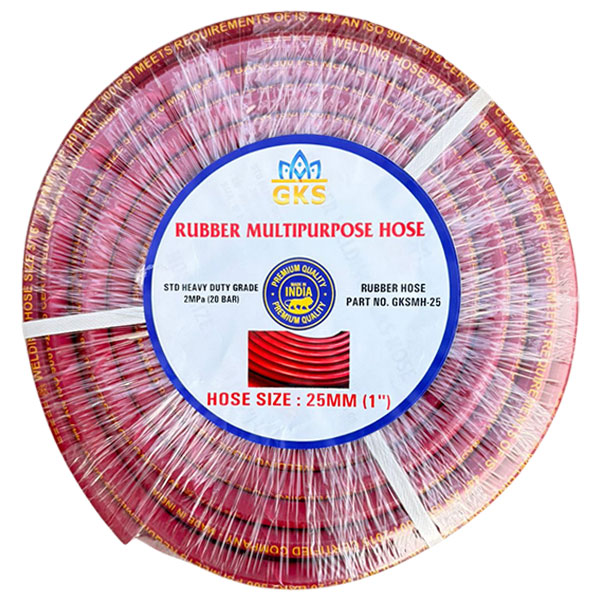

MULTIPURPOSE / GENERAL PURPOSE HOSE
Tube
NBR Oil Resistant Synthetic Rubber Compound
Reinforcement
High Tensile Textile Yarn Braided
Cover
NBR / EPDM Rubber – Ozone & Weather Resistant
Temperature Range
-40°C to +100°C
Applications
Oil / Water / Air Transfer
Properties
Oil, Fuel & Weather Resistance / Uniform Thickness
Colour
Inner – Black | Outer – Red / Black
Finish
Smooth / Wrapped
| Part No. | Inch | ID (mm) | OD (mm) | WP (bar) | WP (psi) | BP (bar) | BP (psi) | Weight (Kg/m) | Std. Length |
|---|---|---|---|---|---|---|---|---|---|
| GKSMH-06 | 1/4 | 6 | 13 | 20 | 300 | 60 | 900 | 0.160 | 100 / 50 |
| GKSMH-08 | 5/16 | 8 | 15 | 20 | 300 | 60 | 900 | 0.200 | 100 / 50 |
| GKSMH-10 | 3/8 | 10 | 17 | 20 | 300 | 60 | 900 | 0.240 | 100 / 50 |
| GKSMH-12 | 1/2 | 12.5 | 21 | 20 | 300 | 60 | 900 | 0.320 | 100 / 50 |
| GKSMH-16 | 5/8 | 16 | 24 | 20 | 300 | 60 | 900 | 0.410 | 100 / 50 |
| GKSMH-19 | 3/4 | 19 | 27 | 20 | 300 | 60 | 900 | 0.500 | 100 / 50 |
| GKSMH-25 | 1 | 25 | 35 | 20 | 300 | 60 | 900 | 0.700 | 100 / 50 |
| GKSMH-32 | 1.1/4 | 32 | 44 | 20 | 300 | 60 | 900 | 1.200 | 60 / 40 |
| GKSMH-38 | 1.1/2 | 38 | 50 | 20 | 300 | 60 | 900 | 1.400 | 60 / 40 |
| GKSMH-51 | 2 | 50 | 64 | 20 | 300 | 60 | 900 | 2.000 | 40 |
