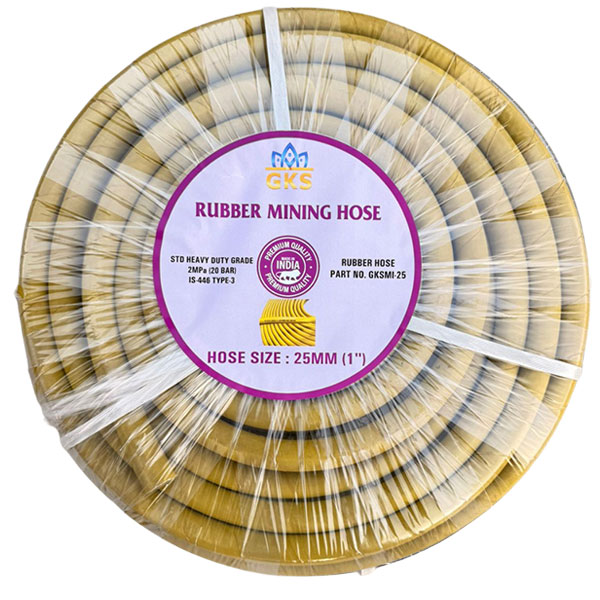

MINING HOSE
Tube
Synthetic Rubber Compound
Reinforcement
High Tensile Synthetic Yarn (Single / Double Braided)
Cover
Abrasion & Weather Resistant Rubber
Temperature Range
-30°C to +80°C
Applications
Open Cast Mining & Construction Sites
Properties
Flexible, Uniform Thickness, High Abrasion Resistance
Colour
Black / Yellow (As per requirement)
Standard
IS 446 Type 3
| Part No. | Inch | ID (mm) | OD (mm) | WP (bar) | WP (psi) | BP (bar) | BP (psi) | Weight (Kg/m) | Std. Length |
|---|---|---|---|---|---|---|---|---|---|
| GKRDM-12 | 1/2 | 12.5 | 23 | 21 | 310 | 84 | 1240 | 0.400 | 100 / 50 |
| GKRDM-19 | 3/4 | 19 | 30 | 21 | 310 | 84 | 1240 | 0.700 | 100/50 |
| GKRDM-25 | 1 | 25 | 38 | 21 | 310 | 84 | 1240 | 1.000 | 100 / 50 |
| GKRDM-32 | 1.1/4 | 32 | 45 | 21 | 310 | 84 | 1240 | 1.300 | 60/40 |
| GKRDM-38 | 1.1/2 | 38 | 53 | 21 | 310 | 84 | 1240 | 1.600 | 60/40 |
| GKRDM-51 | 2 | 51 | 66 | 21 | 310 | 84 | 1240 | 2.200 | 40 |
