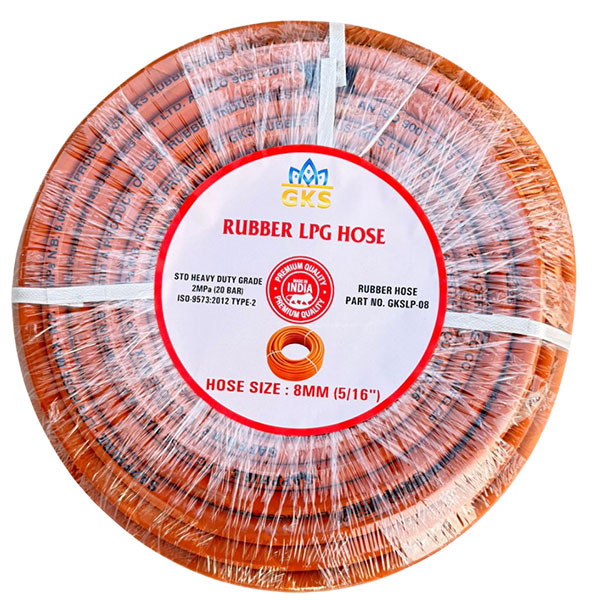

LPG HOSE
Tube
Synthetic Rubber Resistant to n-Pentane
Reinforcement
Single Wire / Synthetic Yarn Braided
Cover
Synthetic Rubber Resistant to Fire & Ozone
Temperature Range
-40°C to +70°C
Applications
Household & Domestic LPG Applications
Properties
Flexible, Uniform Thickness, Fire & Ozone Resistant
Standard Colour
Inner: Black | Outer: Orange
Finish
Smooth / Wrapped
Standard
ISO 9573:2012 TYPE II
| Part No. | Inch | ID (mm) | OD (mm) | WP (bar) | WP (psi) | BP (bar) | BP (psi) | Weight (Kg/m) | Std. Length (m) |
|---|---|---|---|---|---|---|---|---|---|
| GKSLP-06 | 1/4 | 6 | 13 | 25 | 365 | 100 | 1450 | 0.160 | 100 / 50 |
| GKSLP-08 | 5/16 | 8 | 14.5 | 25 | 365 | 100 | 1450 | 0.200 | 100 / 50 |
| GKSLP-10 | 3/8 | 10 | 17 | 25 | 365 | 100 | 1450 | 0.250 | 100 / 50 |
| GKSLP-12 | 1/2 | 12.5 | 23 | 25 | 365 | 100 | 1450 | 0.450 | 100 / 50 |
