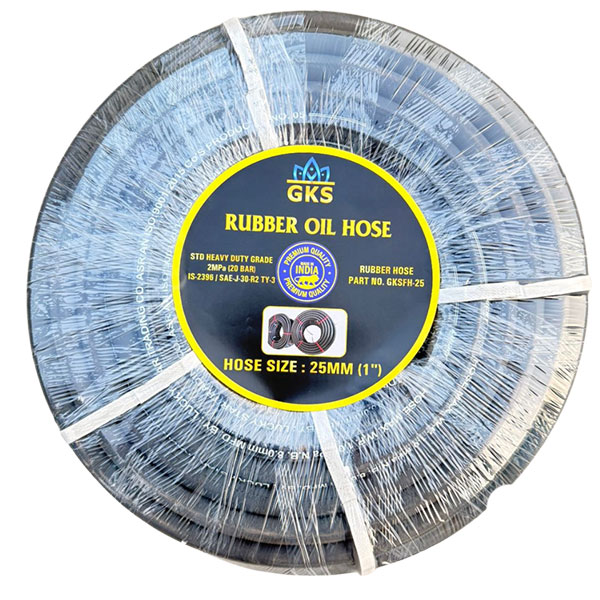

FUEL / OIL HOSE
Tube
Oil Resistant Synthetic Rubber Compound for Petroleum Products
Reinforcement
High Tenacity Textile Braiding
Cover
Smooth / Wrapped Synthetic Rubber Resistant to Oil, Abrasion & Ozone
Temperature Range
-40°C to +100°C
Applications
Fuel & Oil Transfer in Industrial and Machinery Applications
Properties
Oil Resistant, Flexible, Uniform Thickness
Colour
Inner Tube – Black | Outer Cover – Black
Standard
IS 2396 / SAE J30 R2 Type 3
| Part No. | Inch | ID (mm) | OD (mm) | WP (bar) | WP (psi) | BP (bar) | BP (psi) | Weight (Kg/m) | Std. Length |
|---|---|---|---|---|---|---|---|---|---|
| GKSFH-06 | 1/4 | 6 | 12.5 | 20 | 300 | 60 | 900 | 0.180 | 100/50 |
| GKSFH-08 | 5/16 | 8 | 14.5 | 20 | 300 | 60 | 900 | 0.200 | 100/50 |
| GKSFH-10 | 3/8 | 10 | 16 | 20 | 300 | 60 | 900 | 0.240 | 100/50 |
| GKSFH-12 | 1/2 | 12.5 | 20 | 20 | 300 | 60 | 900 | 0.400 | 100/50 |
| GKSFH-16 | 5/8 | 16 | 23 | 20 | 300 | 60 | 900 | 0.450 | 100/50 |
| GKSFH-19 | 3/4 | 19 | 26 | 20 | 300 | 60 | 900 | 0.550 | 100/50 |
| GKSFH-25 | 1 | 25 | 35 | 20 | 300 | 60 | 900 | 0.550 | 100/50 |
