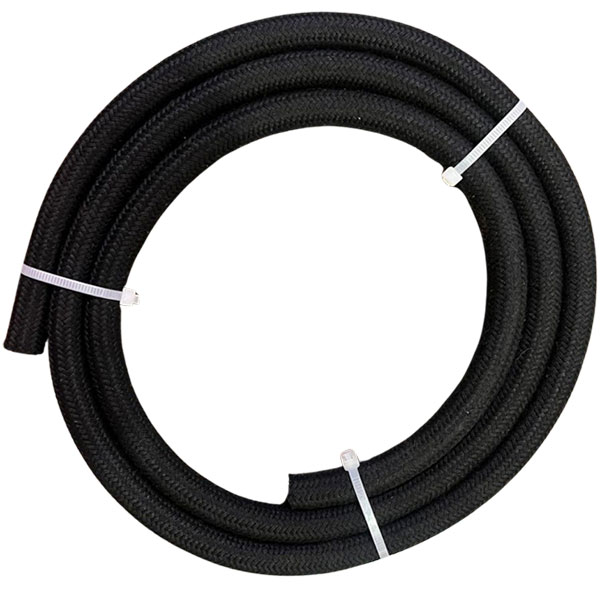

COTTON BRAIDED FUEL HOSE
Tube
NBR Oil Resistant Synthetic Rubber
Reinforcement
Single Braided High Tensile Textile Yarn
Cover
Black Braided Fibre
Temperature Range
-40°C to +100°C
Applications
Low Pressure Hydraulic & Fuel Transfer Applications
Properties
Oil Resistance, Ageing Resistance, Flexible
Finish
Black Textile Braided Finish
Standard
DIN 73379 Type B
| Part No. | Inch | ID (mm) | OD (mm) | WP (bar) | WP (psi) | BP (bar) | BP (psi) | Weight (Kg/m) | Std. Length |
|---|---|---|---|---|---|---|---|---|---|
| GKSCB-06 | 1/4 | 6 | 12 | 10 | 150 | 30 | 450 | 0.120 | 100/50 |
| GKSCB-08 | 5/16 | 8 | 13.5 | 10 | 150 | 30 | 450 | 0.140 | 100/50 |
| GKSCB-10 | 3/8 | 10 | 15 | 10 | 150 | 30 | 450 | 0.170 | 100/50 |
| GKSCB-12 | 1/2 | 12.5 | 19 | 10 | 150 | 30 | 450 | 0.220 | 100/50 |
