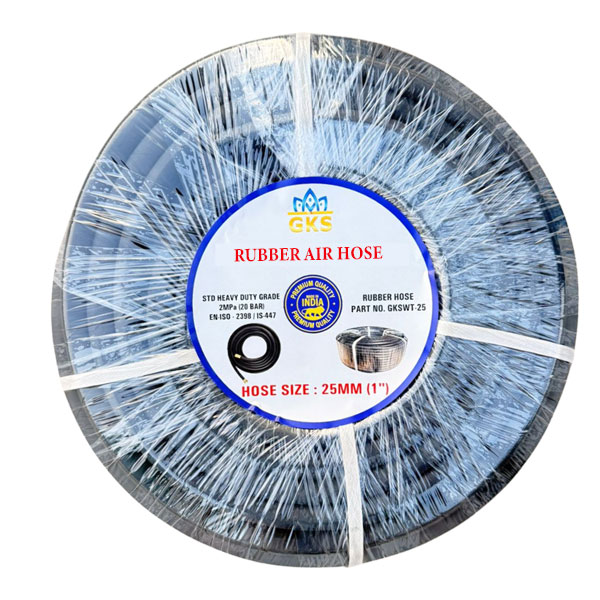

AIR HOSE
Tube
Modified Synthetic – Natural Rubber Compound
Reinforcement
Single or Double Braid of High Tenacity Polyester / Dipped Yarn
Cover
SBR / Natural Rubber Blended Compound with Weather & Abrasion Resistance
Working Temperature
-30°C to +70°C
Main Application
Used for Air & General Industrial Works
Properties
Abrasion Resistance, Flexible, Uniform Thickness
Colour
Inner Tube – Black
Outer Cover – Black / As per customer requirement
Outer Cover – Black / As per customer requirement
Finish
Smooth / Wrapped
Standard
IS 446 / ISO 2398
| Part No. | Inch | ID (mm) | OD (mm) | WP (bar) | WP (psi) | BP (bar) | BP (psi) | Weight (Kg/m) | Std. Length (m) |
|---|---|---|---|---|---|---|---|---|---|
| GKSAH-06 | 1/4 | 6 | 13 | 20 | 300 | 60 | 900 | 0.180 | 100/50 |
| GKSAH-08 | 5/16 | 8 | 15 | 20 | 300 | 60 | 900 | 0.230 | 100/50 |
| GKSAH-10 | 3/8 | 10 | 17 | 20 | 300 | 60 | 900 | 0.260 | 100/50 |
| GKSAH-12 | 1/2 | 12.5 | 21 | 20 | 300 | 60 | 900 | 0.350 | 100/50 |
| GKSAH-16 | 5/8 | 16 | 24 | 20 | 300 | 60 | 900 | 0.440 | 100/50 |
| GKSAH-19 | 3/4 | 19 | 27 | 20 | 300 | 60 | 900 | 0.600 | 100/50 |
| GKSAH-25 | 1 | 25 | 35 | 20 | 300 | 60 | 900 | 0.800 | 100/50 |
| GKSAH-32 | 1-1/4 | 31.5 | 43 | 20 | 300 | 60 | 900 | 1.200 | 60/40 |
| GKSAH-38 | 1-1/2 | 38 | 50 | 20 | 300 | 60 | 900 | 1.450 | 60/40 |
| GKSAH-51 | 2 | 50 | 64 | 20 | 300 | 60 | 900 | 2.000 | 40 |
